Главная страница /Продукция/Электромотор без ядра/High quality totally enclosed 3.0V 6X12MM aircraft toy motor,6mm coreless micro dc motor for toy car JMM1403

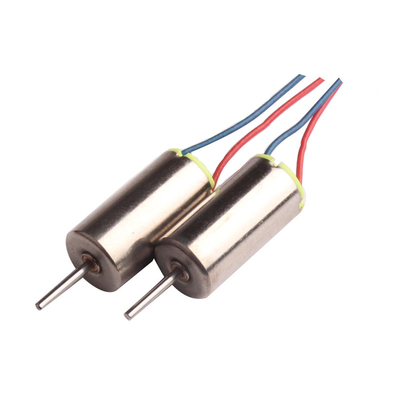

High quality totally enclosed 3.0V 6X12MM aircraft toy motor,6mm coreless micro dc motor for toy car JMM1403

10 Pieces
MOQ
High quality totally enclosed 3.0V 6X12MM aircraft toy motor,6mm coreless micro dc motor for toy car JMM1403
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Model Number: JMM1403-0612Q
Usage: BOAT, Car, Electric Bicycle, FAN, Home Appliance, high quality aircraft toy 6mm micro coreless dc motor
Type: Micro Motor
Torque: Optional
Construction: Permanent Magnet
Commutation: Brush
Protect Feature: Totally Enclosed
Speed(RPM): 31000 ±10%rpm
Continuous Current(A): 400mA Max
Efficiency: IE 2
Rated Current: 25mA Max
Stall Current: 400mA Max
Typical Application: 6mm micro coreless dc motor for toy ,aircraft toy
Keywords: Dc Motors
Size: 6mm*12mm
Rated Voltage: 3.0V
Function: Provide Pirme Power
MOQ: 100
Motor type: dc motor for toy car
Typical Applications: dc motor for toy car
Сертификация: ce, RoHS
Основная информация
Сертификация: ce, RoHS
Model Number: JMM1403-0612Q
Оплата и доставка Условия
Packaging Details: The product is packaged using a two-tier, each carton fitted 5000 pieces motors, the details is as below: Inner plastic tray size 205*165*7(mm) per pack 50 pieces motors; Outer carton size 330*215*350(mm) each fitted 100 pieces plastic trays.
Характер продукции

3.0V 6X12MM high quality aircraft toy motor , 6mm micro coreless dc motor for toy car JMM1403

Product Description

Advantage of high quality aircraft toy 6mm micro coreless dc motor :

1) Energy-saving:

High energy conversion efficiency,more than 70%.

2) Fast Response:

Rapid starting and braking with fast response, mechanincal time constant is

less than 28 milliseconds. Some can reach 10ms or less.

3) Reliable Operational Stability:

Operates quietly and quickly with high efficiency and low resistance.

4) Low Noise

Starting and braking quietly, running with low noise.

5) High Speed

The rpm can reach 4500~51000±10%.

6) Durable

Running stably and reliably, can keep working for longtime.

Characteristic of high quality aircraft toy 6mm micro coreless dc motor:

Mechanical:

See the attached CAD drawing:

Note:

Lead wire can be custom-made.

NOItemSpecificationsRemark
1Model NumberJMM1403-0612Q
2Rated Voltage3.0V DC
3The use of Voltage range2.0-3.5V DC
4Rotation DirectionCW
5The use of temperature range-10℃-60℃≤60%RH
6Rated Current25mA Max
7Rated Speed31000±10%rpmUnder the rated voltage motor operates on load
8Stall Current400mA MaxRated Voltage
9Starting Voltage0.8V DC

In any one position,voltage slowly rises

10Terminal Resistance5.5±5%ΩMersure between two terminals
11Insulation Resistance10MΩohmmeter,measure between the wires and the shell
12AppearanceThe machine no damage and rusting
13WeightAbout 1.35g
14Clearance between shafts0.10-0.20mm

Photos & Drawing:

Packaging & Shipping

The product is packaged using a two-tier, each carton fitted 5000 pieces motors, the details is as below:

Inner plastic tray size 205*165*7(mm) per pack 50 pieces motors;

Outer carton size 330*215*350(mm) each fitted 100 pieces plastic trays.

Shipping Ways :Internatinal Express or By Sea Available

Our Services
WHAT WE DO
Designing Testing

Contact us for motor customisations.

Voltage,Speed,Size,Motor rotation
Motor shaft (length, rear shaft, knurling, matched gear,matched vibrator).

Extensive post-manufacturing testing. Customised testing available.
Manufacturering After-sale Services

We own a factory specialises in Micro Motors.

Over 100 skilled workers ensure reliable product quality and fast delivery.

Solve problems in positive way.

Improve our product quality with your valuable suggestions and comments.

Company Information

Yichang Flourishing Import & Export Trade Co., Ltd.

100% Manufacturer, Fast Delivery, Free Sample, Reliable Quality.

1)Micro Motor manufacturer for many years since 2003 years with our own trade company ;

2)Variable dc brush motors (eg: coin motor ,coreless motor ,iron motor etc.) are available.

3)Super A+++ Quality with competitive price.

Main Products

Micro driving motor

Micro vibrating motor

DC coreless motor

Coin type vibrating motor

Precious-mental brush motor

Carbon-brush motor

Products Applications

Electrical Toys,Toy Car ,Toy Boat,Model Train,Toy Airplane ,

Electric Shaver ,Small Electric Fan ,CPU Cooler Fan

RC Toys ,RC Car,RC Helicopter,Quadcopter,Aeromodelling

Game Machine, Game Handle, Game Controller

Household Appliances, Electric Appliances

Sex Toys, Vibrating Toothbrush, Mobile Phone, Pager

Massager, Massage Rod, Eye Massagers,Medical Products

PCS (Personal Communication by Satellite)

PDA (Personal Digital Assistants)

FAQ

Q: What kind of motors you can provide?

A: we mainly provide permanent magnet brushed dc (vibration and driving )motors, voltage from 1v to 24v ,diameter range from 4~52mm and with different conect ways ,like lead wire ,pins,spring .....;

Q: Is there a MOQ for your motors?

A: Yes. The MOQ is 1,000pcs for different models after sample approval. But it's also okay for us to accept smaller lots like a few dozens, hundreds after sample approval.

Q: Could you send me a price list?

A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.

Q: Is it possible for you to develop new motors if we provide the tooling cost?

A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not .
