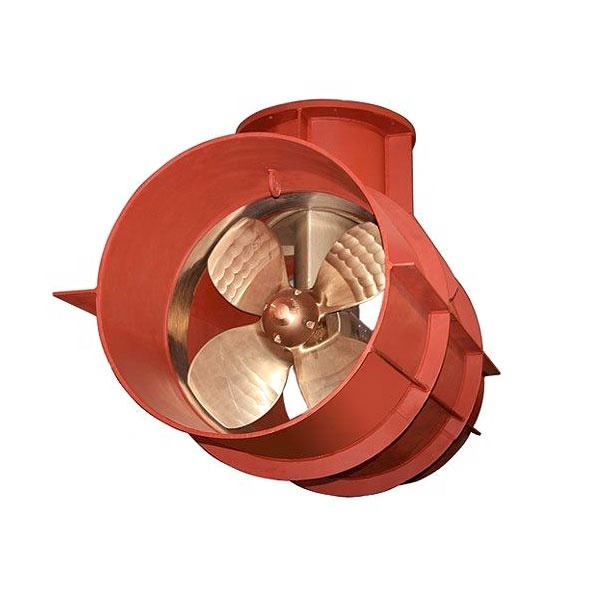

Nial 15KN Marine Electric Side Thruster 100KW Bronze Motor

15KN Marine Electric Side Thruster 100KW Motor

1.

Propeller

2, Thruster unit consisting of

Motor foundation to install motor, bolts also provided

Gearbox is made of cast steel.

Propeller shaft are of forged steel and cone in end to fit propeller hub.

High quality spiral gears with surface special harden.

Rope cover install out of the seal to protect rope.

3 years life of aluminum anode.

Tunnel grid design by us and made by shipyard

3: Coupling:

Halves coupling, one half install on output shaft of motor, one on thruster unit

4: Main motor:

3 phase, totally closed, vertical type, squirrel cage.

Power: 100kw

Insulation Class F

Protection class IP23

Frequency converter start

Installation type: vertical

Cooling method: by air

S2 Operation type

With bearing and winding tem. Sensor.

5: Frequency converter starter:

Frequency converter starter:

Start current <1.1 ratio current

Max power 140kw

Scope of frequency 50Hz

Standard IEC

Cooled by air

Protection class IP21

6: Remote Control system:

2 control site(BCR and local)

Consisting of:

1 x Central Cabinet

2 x Control panel (1 x BCR; 1 x local)

1 x Spare part set with lamps and fuses

7: Other loose supply:

1 gravity tank, volume 10L

1 hand pump

8: Documentation:

(4) Four sets of service and installation manuals,

9: Exclusions to our normal Scope of Supply:

Fitting of the tube to the hull structure

Bell-mouth and nozzle which are joined to the thruster tube

Installation of the gravity tank

Tunnel grids, to be supplied by yard

Materials for the piping and piping fittings.

Materials for the wiring and wiring fittings.

External electric cabling with supports and protection.

Hydraulic oil or lub. Oil and etc.

Electric Tunnel Bow Thruster:

Frequency Inverter Starter:

Frequency Converter:

Control Device:

Besides the bow thrusters, we also design and supply the main engine, gearbox, shaftings, propellers, propeller nozzle for the tugs, tankers, containers, bulk carriers, dry cargo carriers, dredgers, and fishing boats, etc.

I. Packaging Methord:

1. Wooden Csse;

2. Iron Frame;

For different shipping methods and destinations, we will suggest different packaging. If you have any requirement for the packaging, please let me know during enquiry.

II. Shipping:

We offer our clients one-stop service. The shipping tool can be by sea, by air or by train. It depends on the destination of our products. And we will suggest you the min. cost and min. damage of the products.

Product Range: Marine Equipemnet, Offshore Equipment & Dock Equipment, etc.

Customer Range: Shipyards, Shipowners, Ship Managers, Engineering Companies, Constructors, Trading Companies, Wholesalers, etc.

Design Ability: We have a very experienced, creative, and cooperative team, which can design the whole propulsion system according to different vessels and requirements.

Material Preparation: our purchasing dept. will choose the material from many aspects, such as cost, quality, machining, environment protection, etc.

Machining & Test: We have advanced processing equipment with responsible crews. Our factory also have strict quality control process and test skills.

After-sale Service: You will get the after-sale service all over the world. Convenient, Fast, High Efficiency, World-wide, etc.

Best service will be enjoyed by cooperating with us.

And different certificates will be availbale, such as CCS, ABS, BV, DNV, NK, KR, LR, GL, RINA, etc.
